| Model Number | L320D | L320T | L320Q | |
|---|---|---|---|---|
| Continuous Force | (N) | 55 | 82 | 109 |
| Continuous Current | (A rms) | 1.3 | 1.3 | 1.3 |
| Acceleration Force | (N) | 218 | 327 | 436 |
| Accel. Current | (A rms) | 5.0 | 5.0 | 5.0 |
| Shaft Diameter | 32 | 32 | 32 | |
| Forcer Size | (mm) | Double windings | Triple Windings | Quadruple Windings |
| Forcer Length | (mm) | 160 | 220 | 280 |
| Forcer Weight | (kg) | 1.3 | 1.9 | 2.6 |
| Air Gap | (mm) | 2.50 | 2.50 | 2.50 |

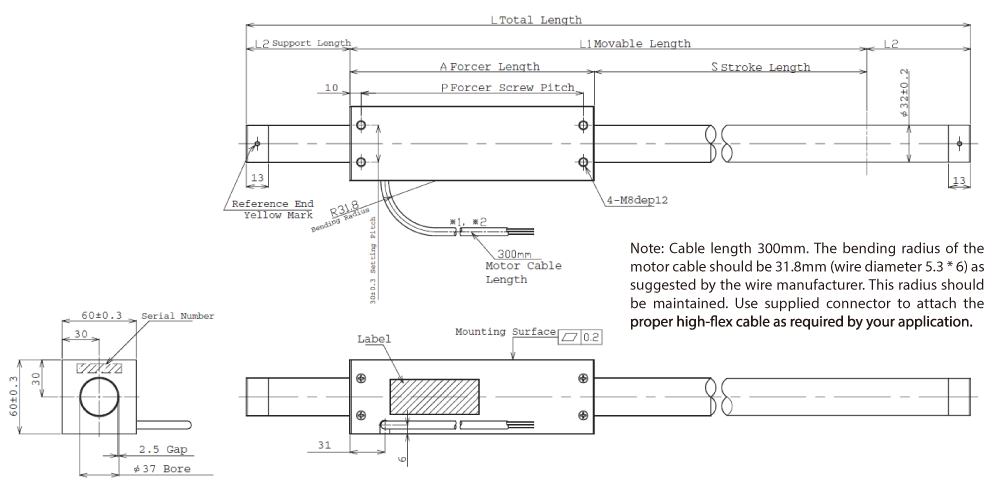

Dimension Guide

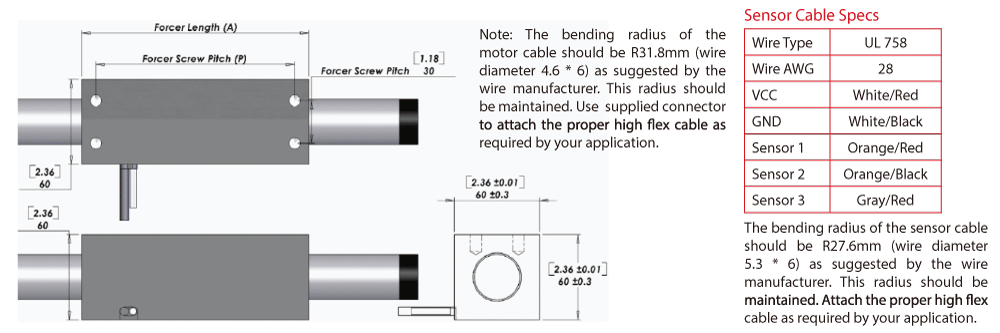

Hall Effect Specs
