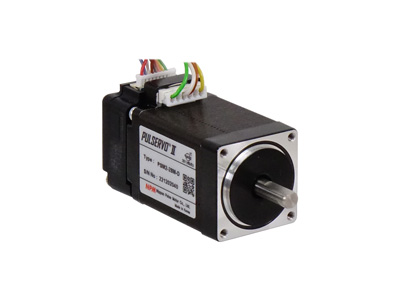

PSM2-28

Standard type, frame size 28 mm square

Motor frame size 28 mm square
 3 stator lengths, 32 mm and 45 mm and 50 mm are available.
The encoder resolution is 16000P/R.

Please purchase a motor and driver set.

Specifications

Motor model	Unit	PSM2-28S-D	PSM2-28M-D	PSM2-28L-D
Rated current / phase	A	0.95	0.95	0.95
Holding torque	N・m	0.062	0.088	0.106
Rotor inertia	Kg・m2	9×10-7	13×10-7	18×10-7
Weight	g	147	204	232
Stator length	mm	32	45	50

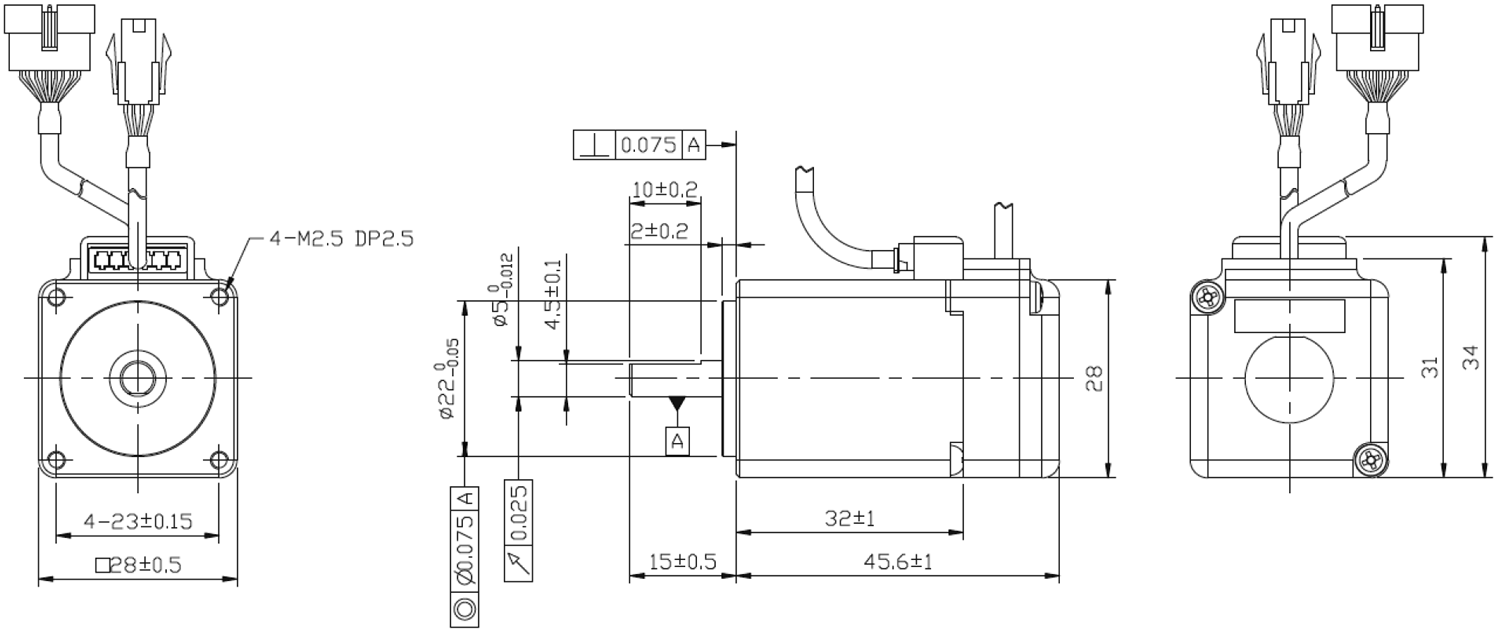

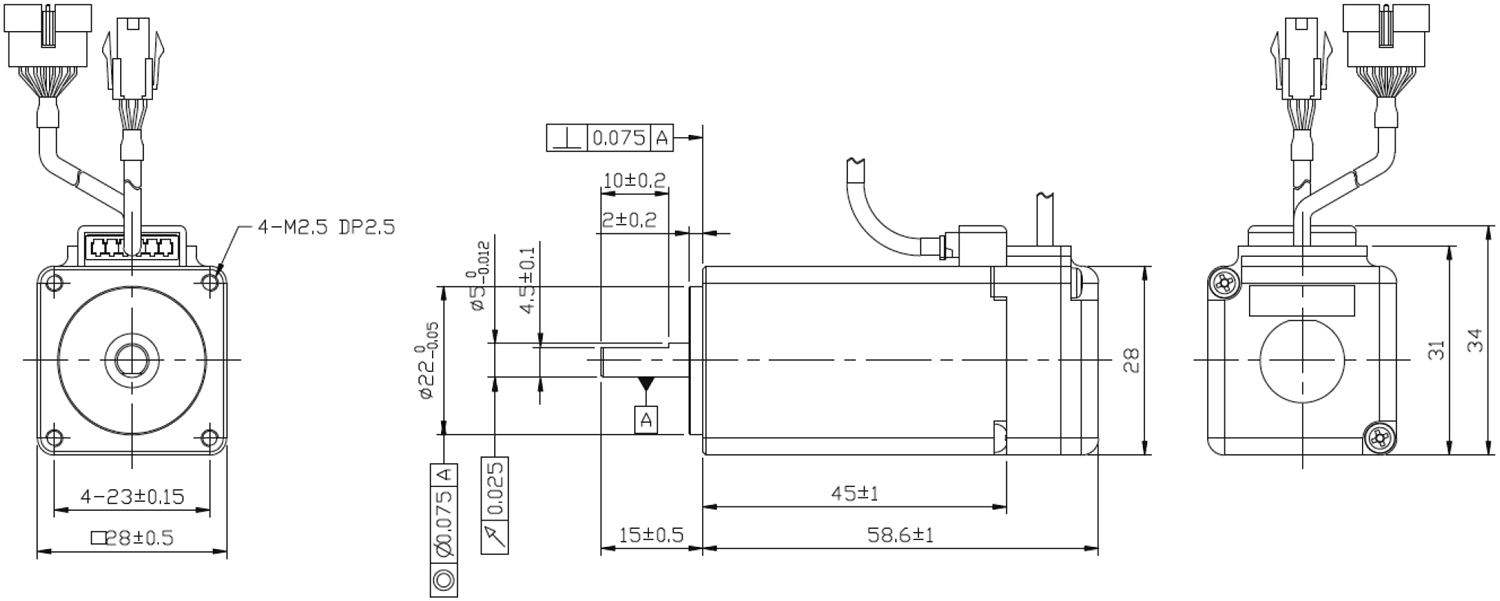

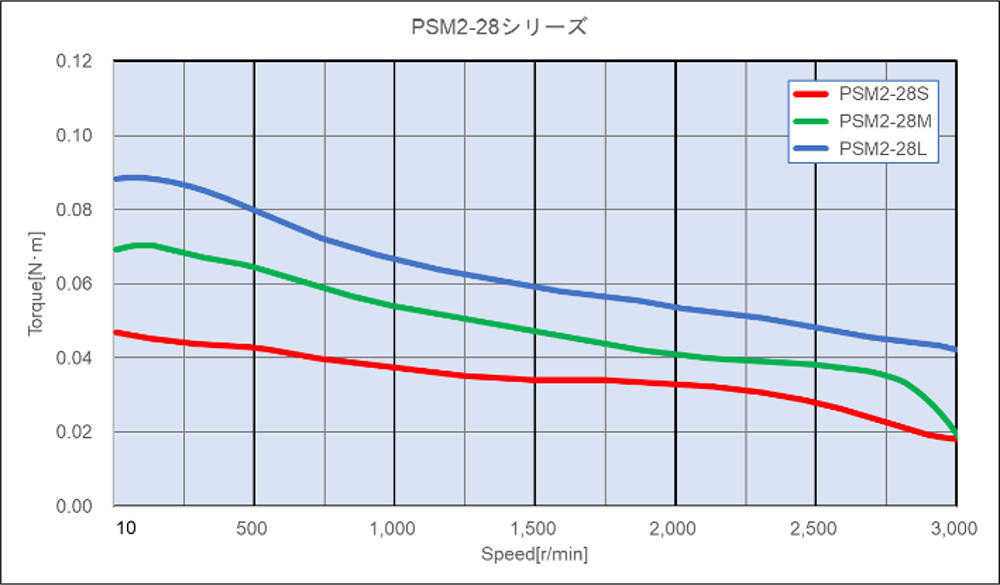

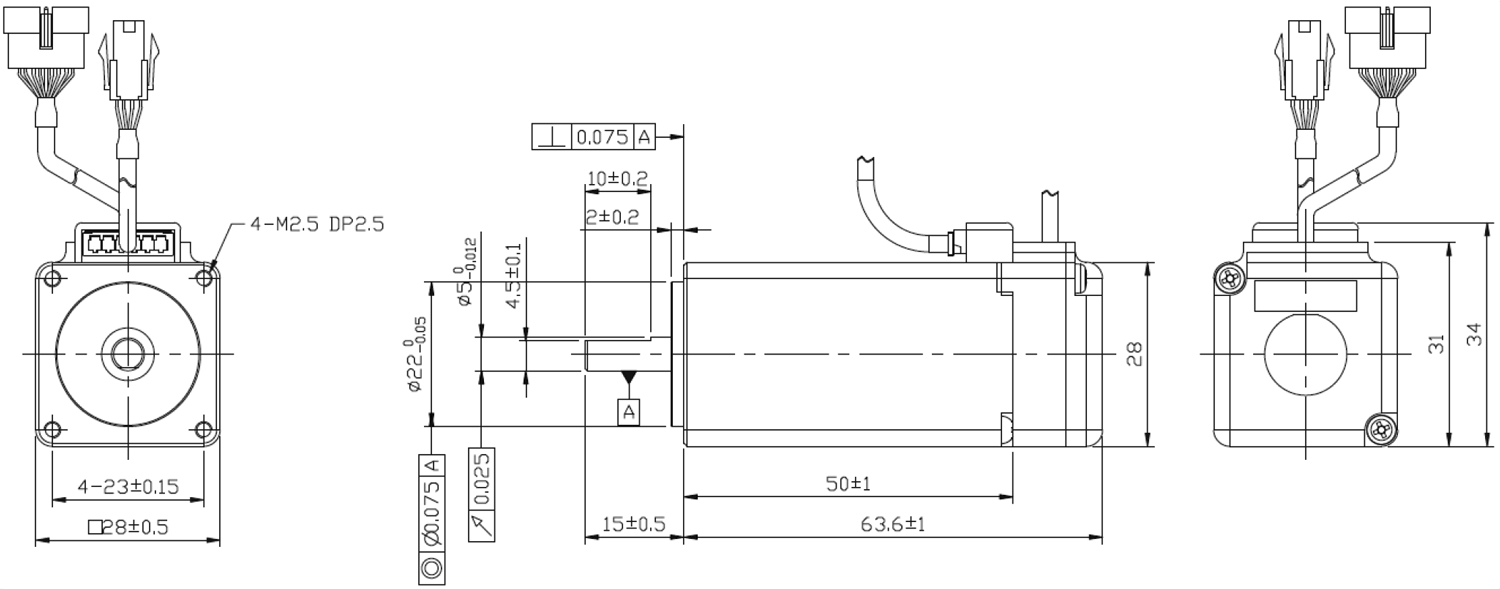

External dimensions/ Torque
