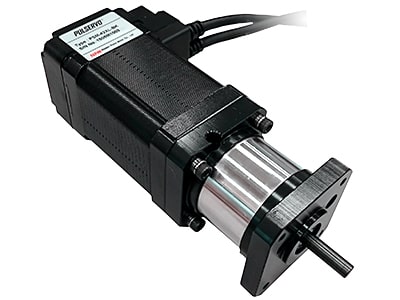

PSM2-42-BK

Motor with brake, frame size: 42 mm square

Motor frame size 42 mm square
Four stator lengths are available: 34 mm, 40mm, 48 mm, and 60 mm

Individual brakes can be attached as an option.
Use the brake to hold the position.

Please purchase a motor and driver set.

Specifications

Motor model		PSM2-42S-△-BK	PSM2-42M-△-BK	PSM2-42L-△-BK	PSM2-42XL-△-BK
Electro-magnetic brake specifications	Operation method	Non excitation operation type
	Power (V)	DC24V ±10%
	Rated current (A)	0.2A ±10%
	Power consumption   (W)	5.0
	Static-friction torque (N・m)	0.2
Weight(g)		550	620	690	820
Allowable overhang load (N) *Distance from tip of motor	3mm	22
	8mm	26
	13mm	33
	18mm	46
Rotor moment of inertia (kg･m²)		45×10-7	64×10-7	87×10-7	124×10-7

※ △ of motor model indicates the resolution,  A: 10000P/R and B: 20000P/R.

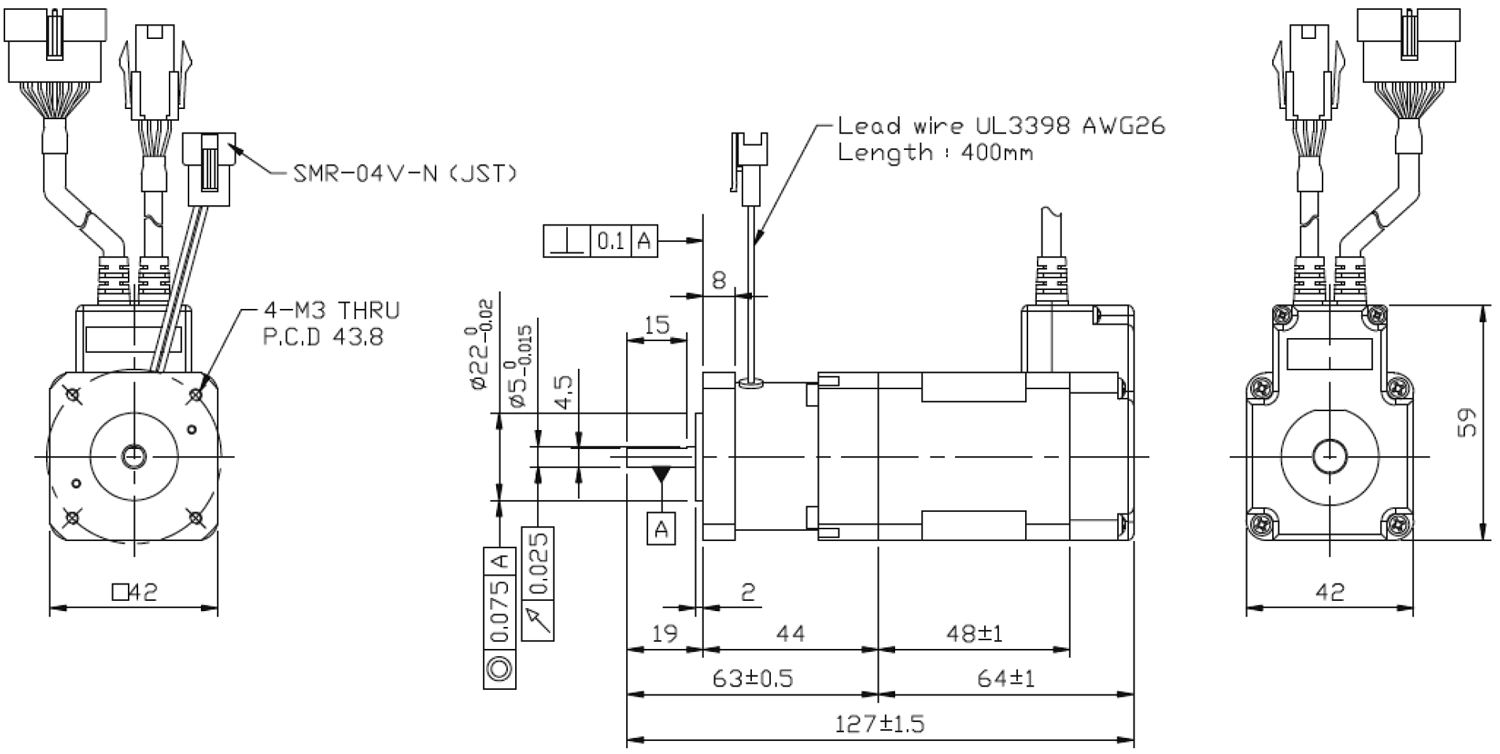

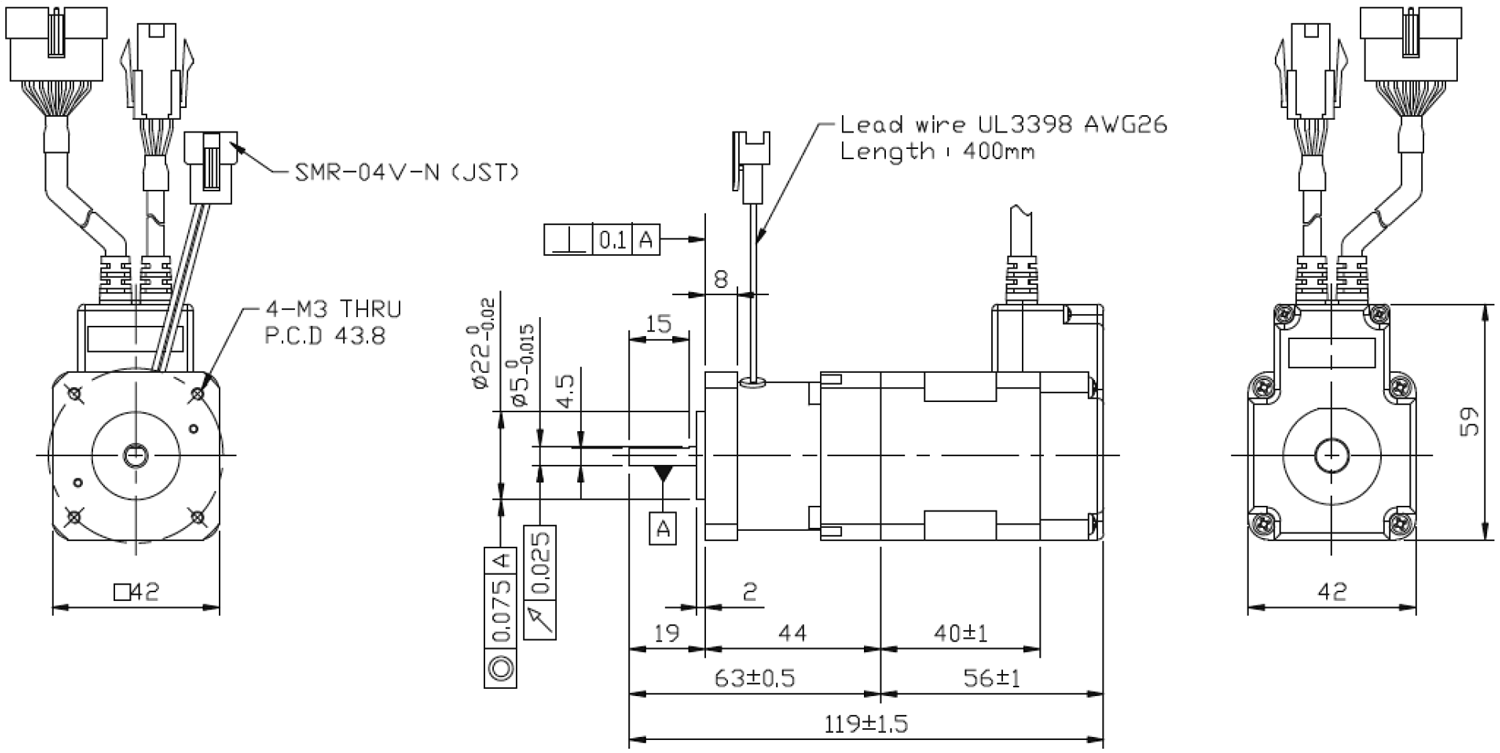

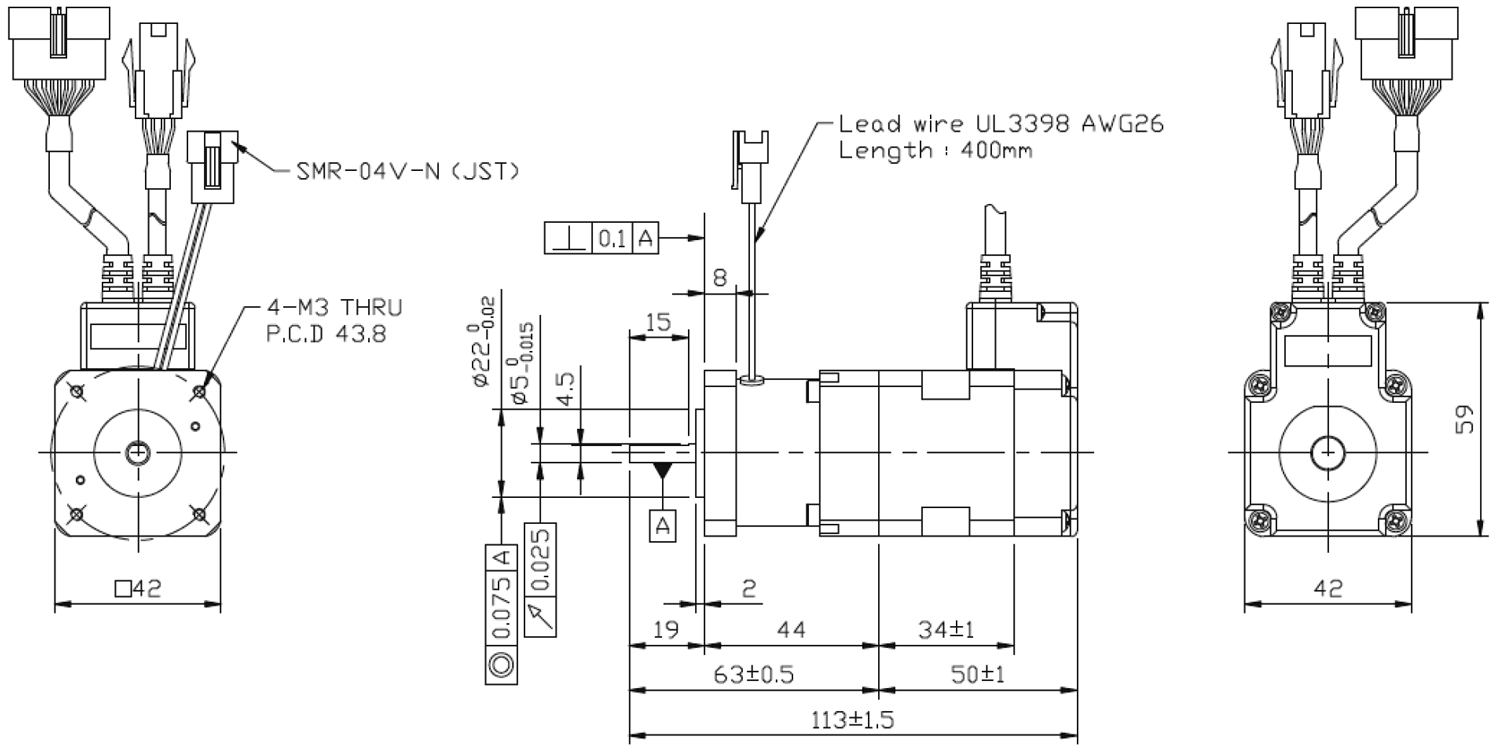

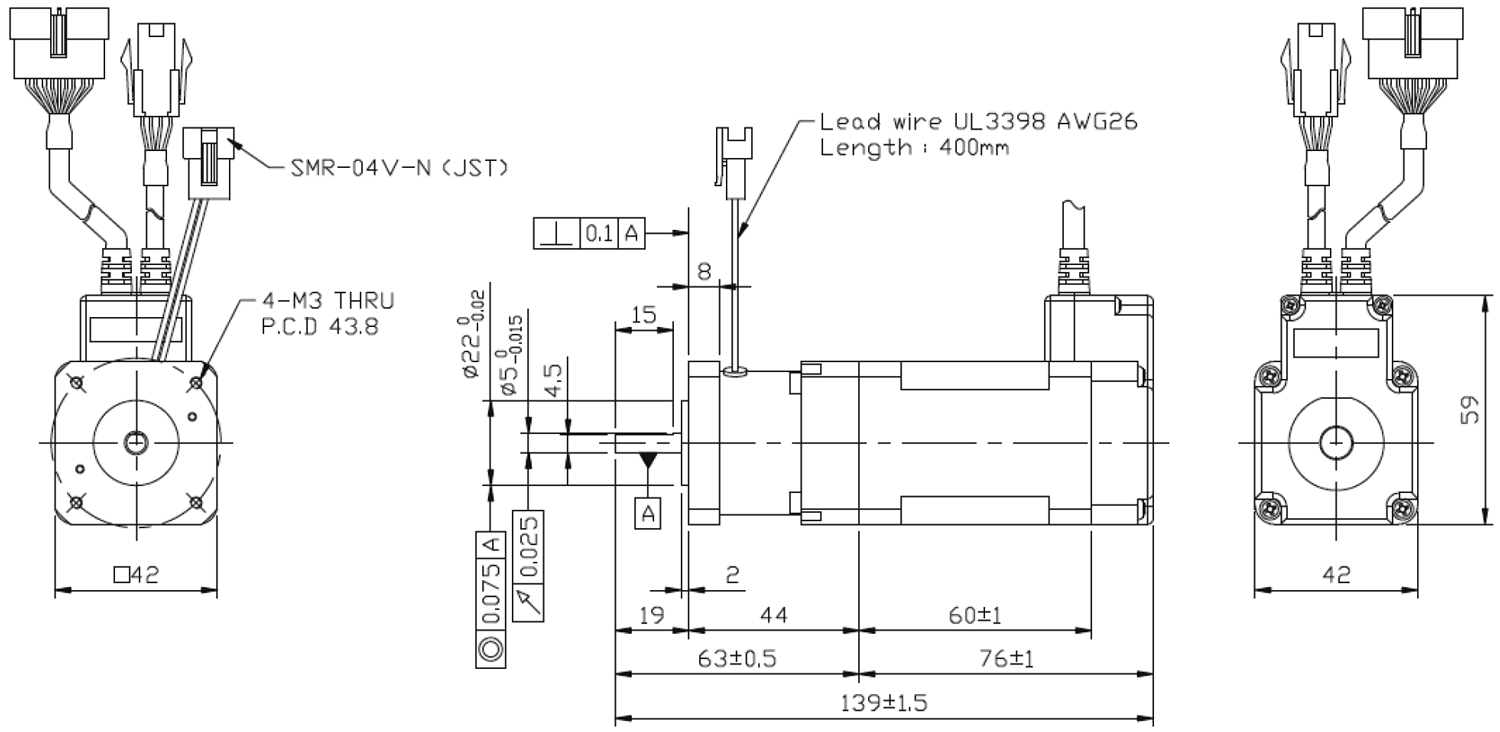

External dimensions
