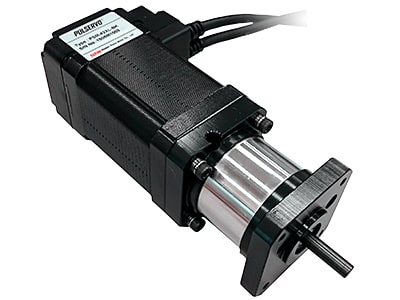

Motor with brake, frame size: 56 mm square

Motor frame size 56 mm square
3 stator lengths are available: 46 mm, 55mm, 80 mm

Individual brakes can be attached as an option.
Use the brake to hold the position.

Please purchase a motor and driver set.


Motor model PSM2-56S-△-BK PSM2-56M-△-BK PSM2-56L-△-BK
Electro-magnetic brake specifications Operation method Non excitation operation type
Power (V) DC24V ±10%
Rated current (A) 0.27A ±10%
Power consumption   (W) 6.6
Static-friction torque
Weight(g) 1030 1200 1650
Allowable overhang load (N)
*Distance from tip of motor
3mm 52
8mm 65
13mm 85
18mm 123
Rotor moment of inertia (kg・m²) 205×10-7 305×10-7 545×10-7

△ of motor model indicates the resolution,  A: 10000P/R and B: 20000P/R.

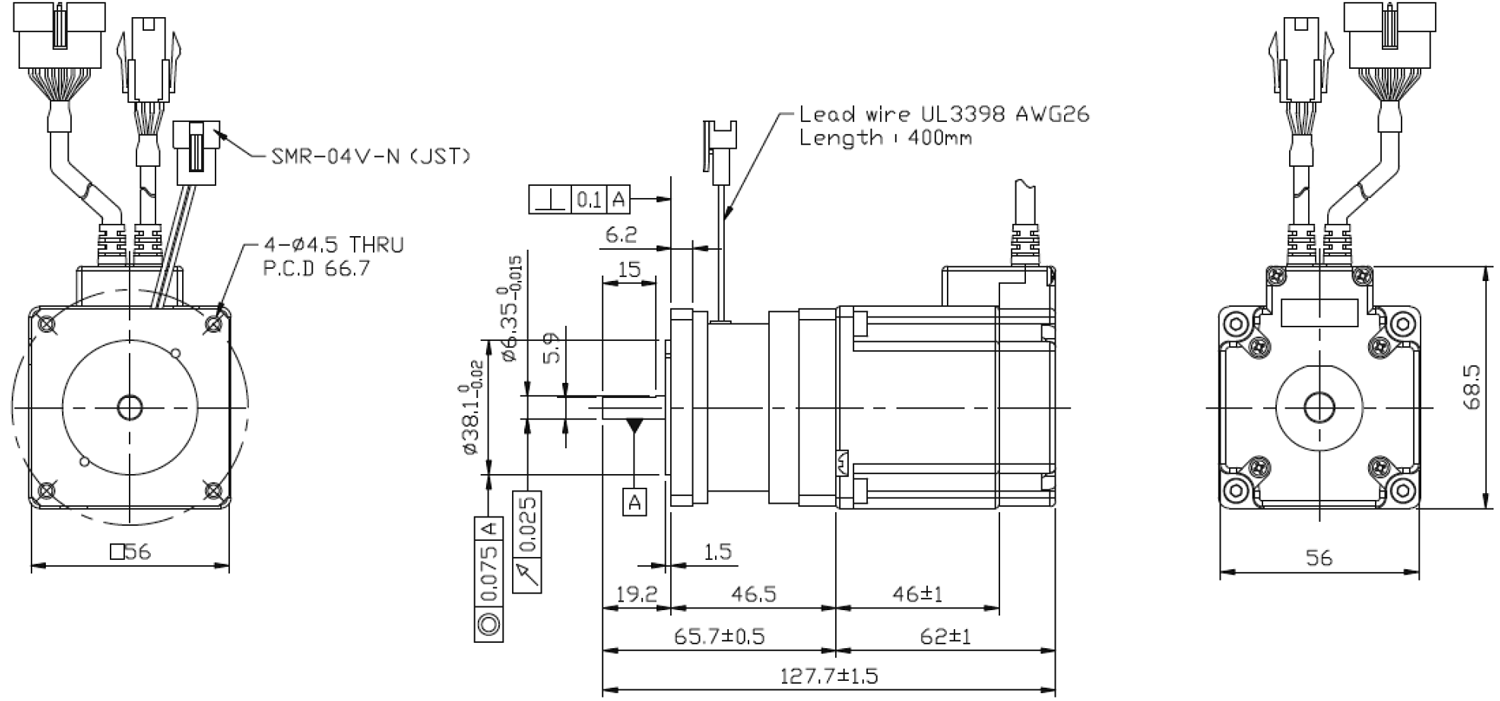

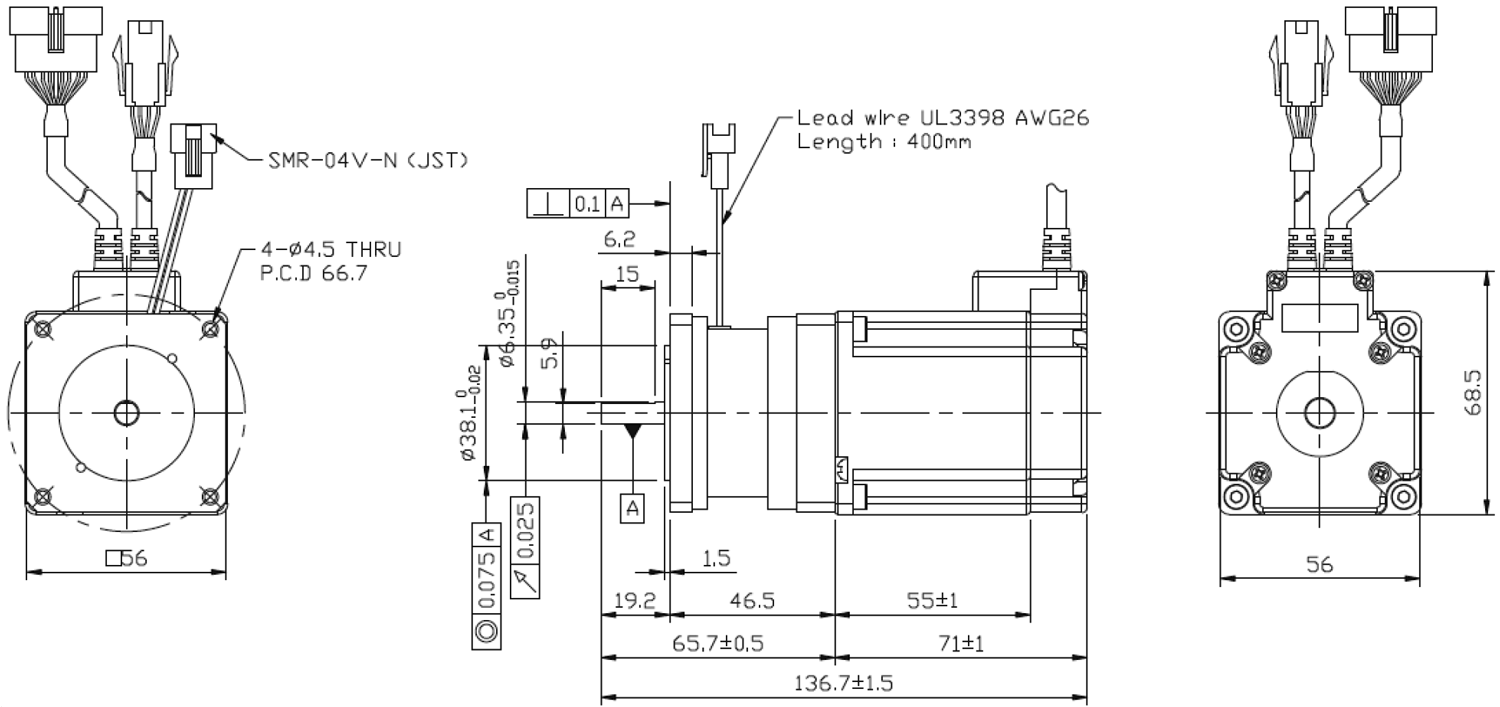

External dimensions
