Standard type, frame size 60 mm square
Motor frame size 60 mm square
3 stator lengths, 47 mm, 56 mm, 85 mm are available.
The encoder resolution is 10000P/R and 20000P/R.
Please purchase a motor and driver set.
Specification
| Motor model | Unit | PSM2-60S-△ | PSM2-60M-△ | PSM2-60L-△ |
|---|---|---|---|---|
| Rated current / phase | A | 4.0 | 4.0 | 4.0 |
| Holding torque | N・m | 0.79 | 1.15 | 2.16 |
| Rotor inertia | Kg・m2 | 240×10-7 | 490×10-7 | 690×10-7 |
| Weight | g | 693 | 856 | 1419 |
| Stator length | mm | 47 | 56 | 85 |
△ of motor model indicates the resolution, A: 10000P/R and B: 20000P/R.
External dimensions/ Torque

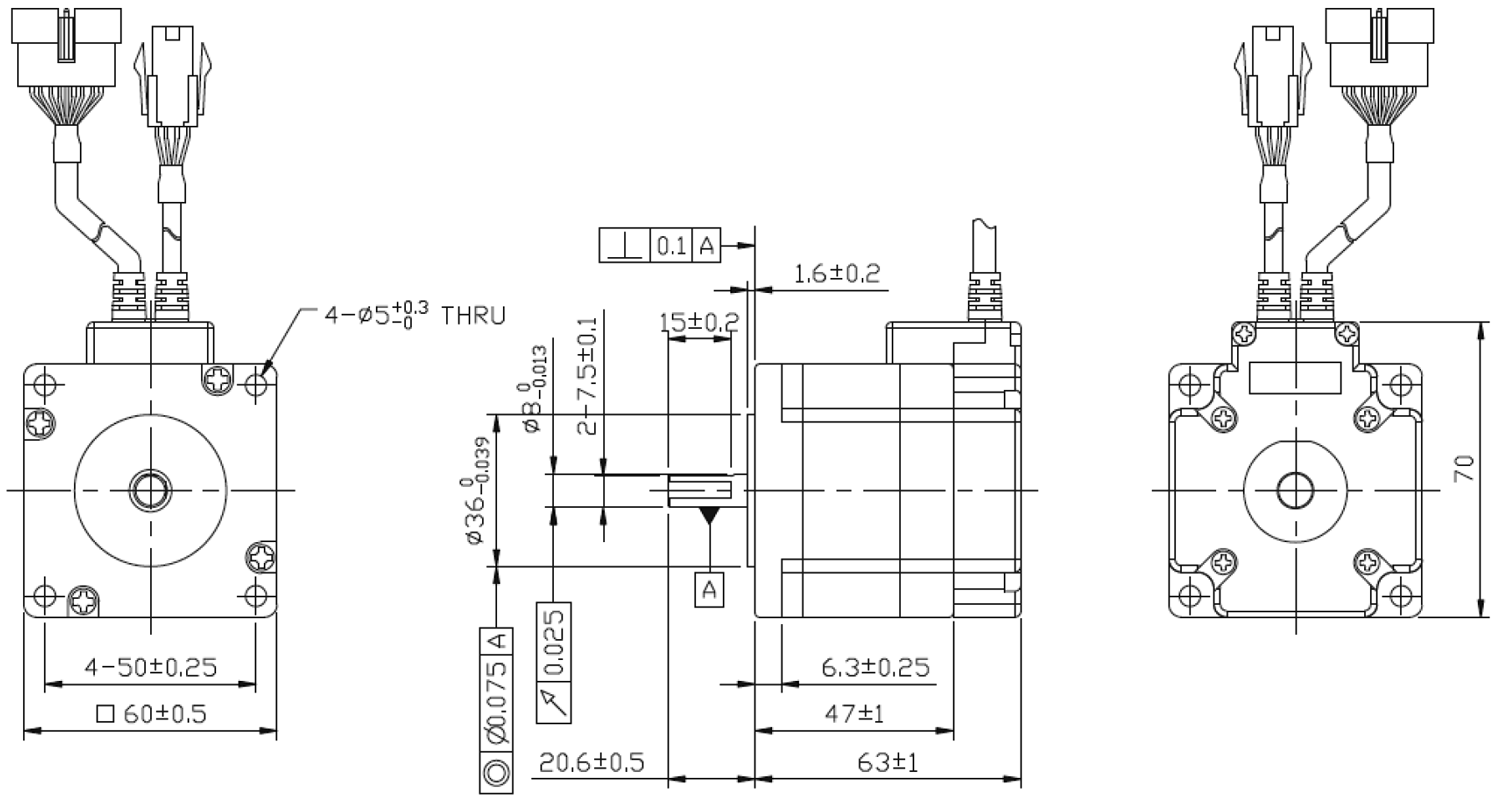

PSM2-60S-△
*Click to zoom in.

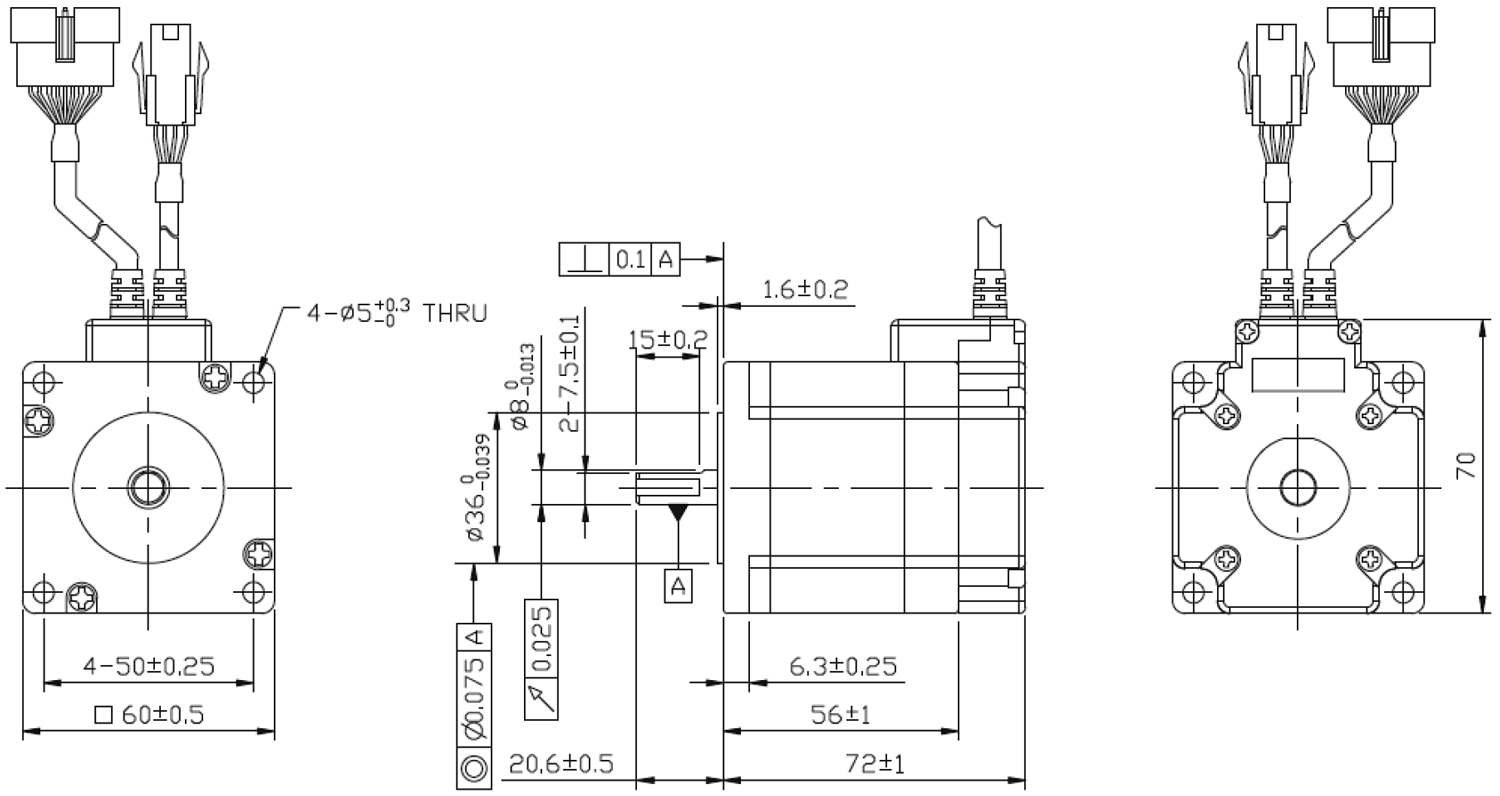

PSM2-60M-△
*Click to zoom in.

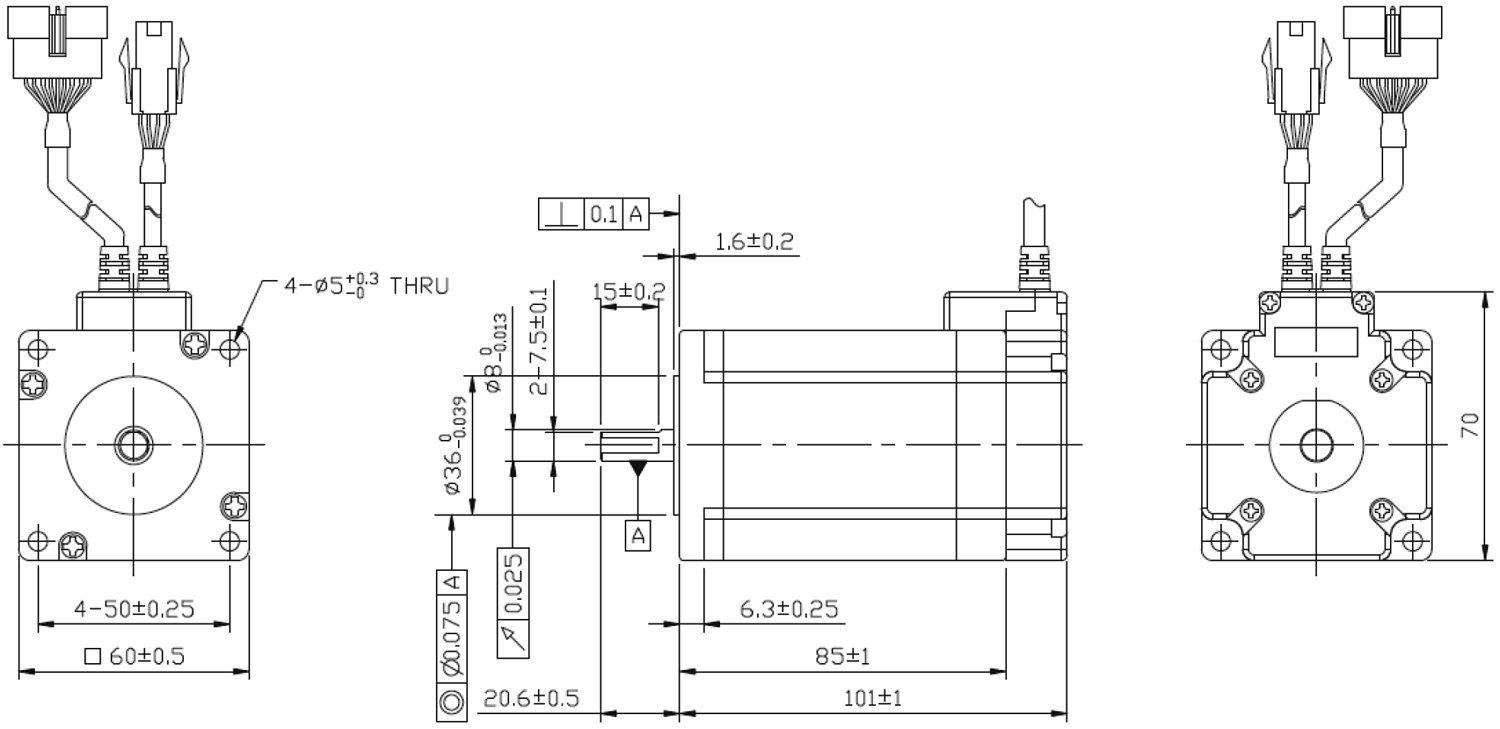

PSM2-60L-△
*Click to zoom in.

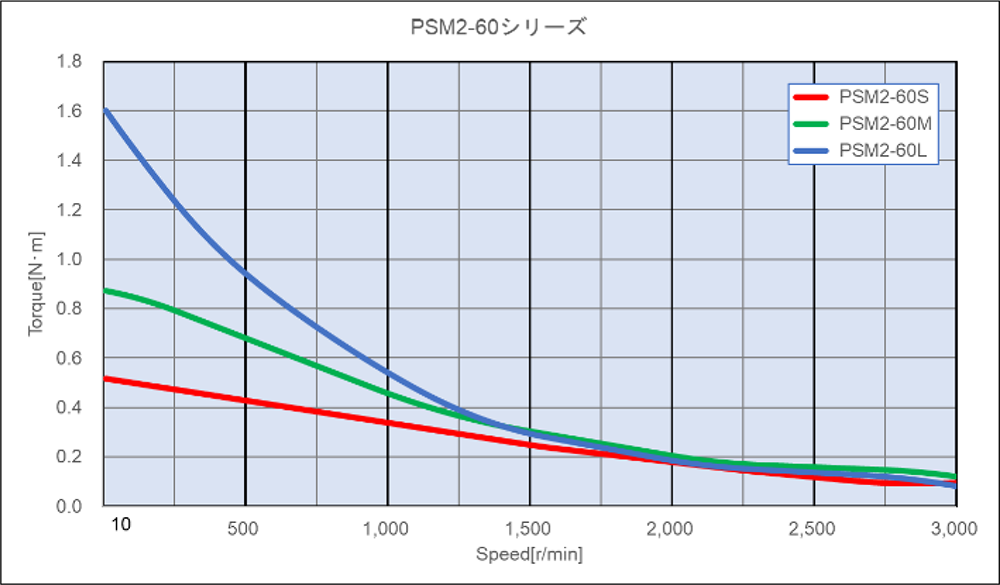

Torque characteristic (Common)
*Torque characteristics are reference only, not a guaranteed value.
*Click to zoom in.
