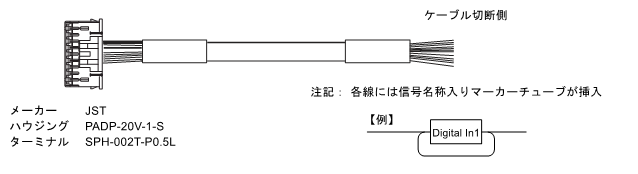

Input / Output signal cable (for CN1)
| Model | Cable length (m) | Specifications |
|---|---|---|
| CSVS-S-□□□F | □□□ | Normal cable |
| CSVS-S-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m, 2 m, 3 m, 5 m, 7 m, 10 m, and 15 m.
In the case of 1 m length cable, enter 001 in the model number.

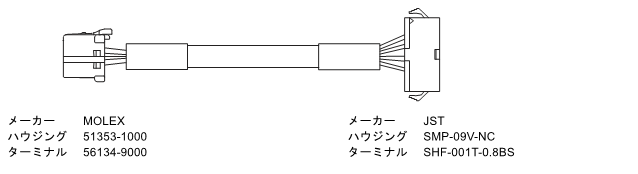

Encoder junction cable (for CN2)
| Model | Cable length (m) | Specification |
|---|---|---|
| CSVO-E-□□□F | □□□ | Normal cable |
| CSVO-E-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m, 2 m, 3 m, 5 m, 7 m, 10 m, and 15 m.
In the case of 1 m length cable, enter 001 in the model number.

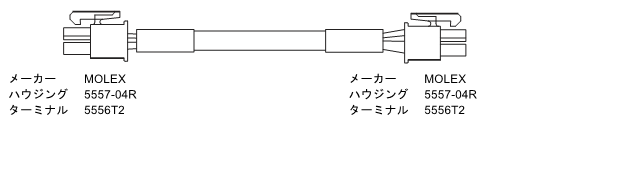

Motor junction cable (for CN3)
| Model | Cable length (m) | Specification |
|---|---|---|
| CSVO-M-□□□F | □□□ | Normal cable |
| CSVO-M-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m, 2 m, 3 m, 5 m, 7 m, 10 m, and 15 m.
In the case of 1 m length cable, enter 001 in the model number.

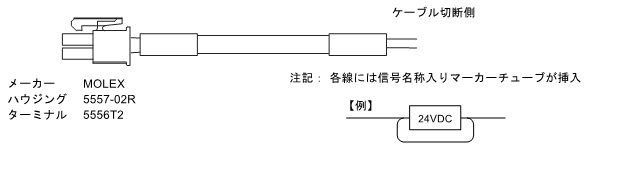

Main power supply cable (for CN4)
| Model | Cable length (m) | Specification |
|---|---|---|
| CSVO-P-□□□F | □□□ | Normal cable |
| CSVO-P-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m and 2 m.
In the case of 1 m length cable, enter 001 in the model number.

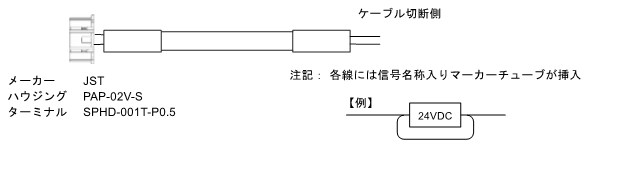

Control connection cable (for CN5)
| Model | Cable length (m) | Specification |
|---|---|---|
| CMNB-P-□□□F | □□□ | Normal cable |
| CMNB-P-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m and 2 m.
In the case of 1 m length cable, enter 001 in the model number.

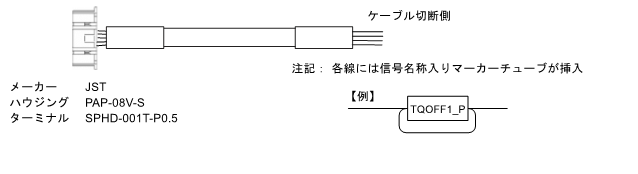

Torque Off signal connection cable (for CN6)
| Model | Cable length (m) | Specification |
|---|---|---|
| CSVT-S-□□□F | □□□ | Normal cable |
| CSVT-S-□□□M | □□□ | Flexible cable |
※Standard cable lengths are 1 m, 2 m, 3 m, 5 m, 7 m, 10 m, and 15 m.
In the case of 1 m length cable, enter 001 in the model number.

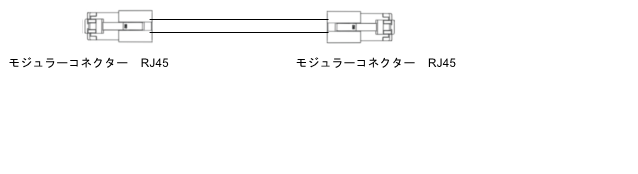

EtherCAT communication cable (for CN7)
| Model | Cable length (m) | Specification |
|---|---|---|
| CGNR-EC-□□□F | □□□ | Normal cable |
※Standard cable lengths are 1 m, 2 m, 3 m, and 5 m.
In the case of 1 m length cable, enter 001 in the model number.
