Spec
| S160D | S160T | S160Q | ||
| Continuous Force | (N) | 10 | 15 | 20 |
| Continuous Current | (A rms) | 0.6 | 0.6 | 0.6 |
| Acceleration Force | (N) | 40 | 60 | 81 |
| Accel. Current | (A rms) | 2.5 | 2.5 | 2.5 |
| Shaft Diameter | (mm) | 16 | 16 | 16 |
| Forcer Size | Double windings | Triple Windings | Quadruple Windings | |
| Forcer Length | (mm) | 80 | 110 | 140 |
| Forcer Weight | (kg) | 0.15 | 0.2 | 0.3 |
| Air Gap | (mm) | 0.50 | 0.50 | 0.50 |

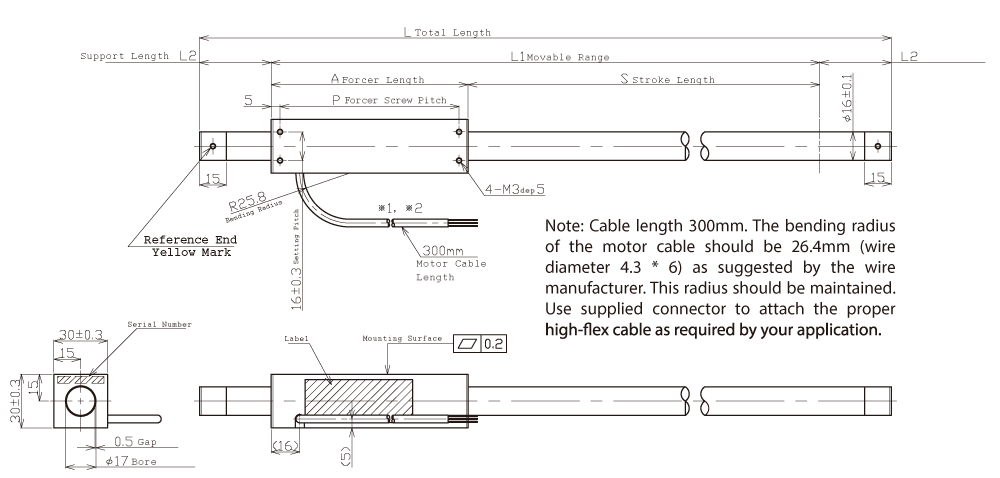

Dimension Guide

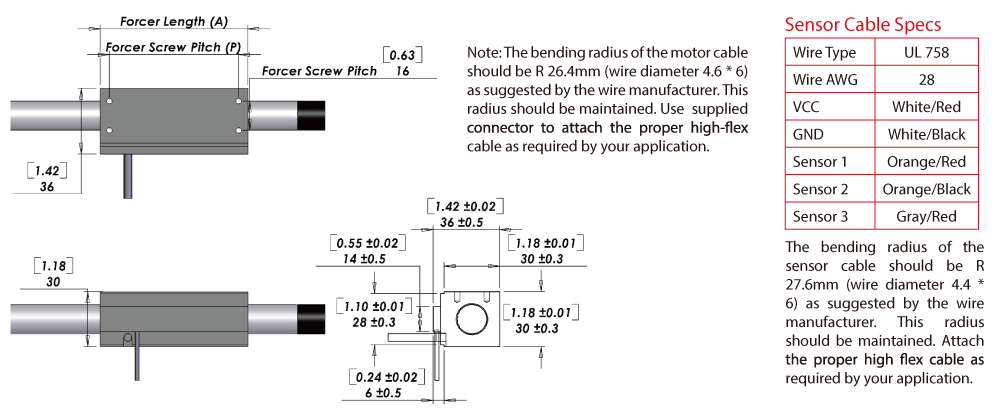

Hall Effect Specs
