Spec
| S200D | S200T | S200Q | ||
| Continuous Force | (N) | 18 | 28 | 38 |
| Continuous Current | (A rms) | 0.6 | 0.6 | 0.6 |
| Acceleration Force | (N) | 72 | 112 | 152 |
| Accel. Current | (A rms) | 2.4 | 2.4 | 2.4 |
| Shaft Diameter | (mm) | 20 | 20 | 20 |
| Forcer Size | Double windings | Triple Windings | Quadruple Windings | |
| Forcer Length | (mm) | 94 | 130 | 166 |
| Forcer Weight | (kg) | 0.3 | 0.5 | 0.7 |
| Air Gap | (mm) | 0.75 | 0.75 | 0.75 |

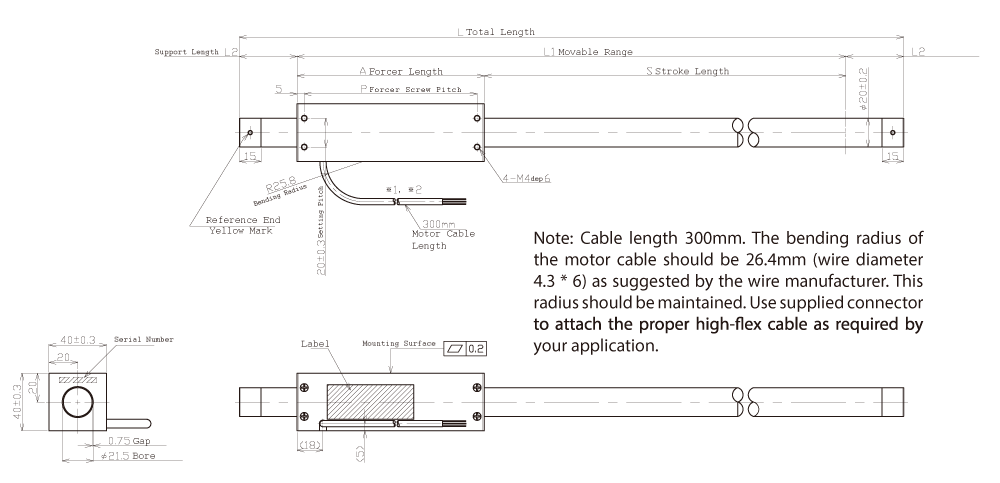

Dimension Guide

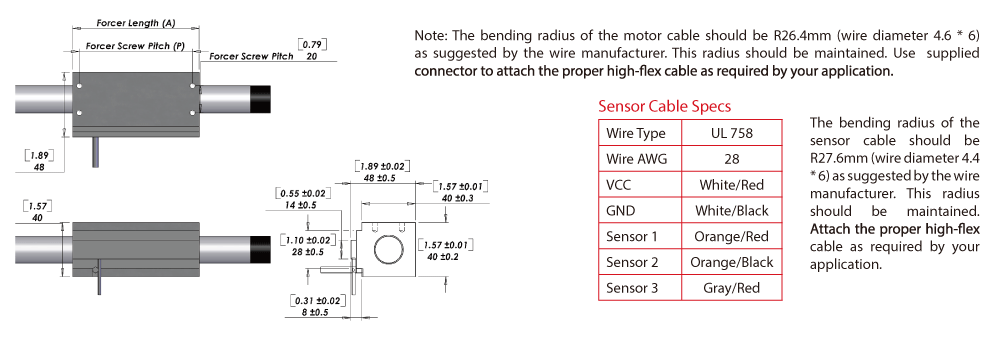

Hall Effect Specs
