S350 series

Spec

    S350D S350T S350Q
Continuous Force (N) 104 148 190
Continuous Current (A rms) 1.5 1.5 2.7
Acceleration Force (N) 416 592 760
Accel. Current (A rms) 6.0 6.0 10.8
Shaft Diameter (mm) 32 32 32
Forcer Size   Double windings Triple Windings Quadruple Windings
Forcer Length (mm) 160 220 280
Forcer Weight (kg) 1.3 1.9 2.4
Air Gap (mm) 1.00 1.00 1.00

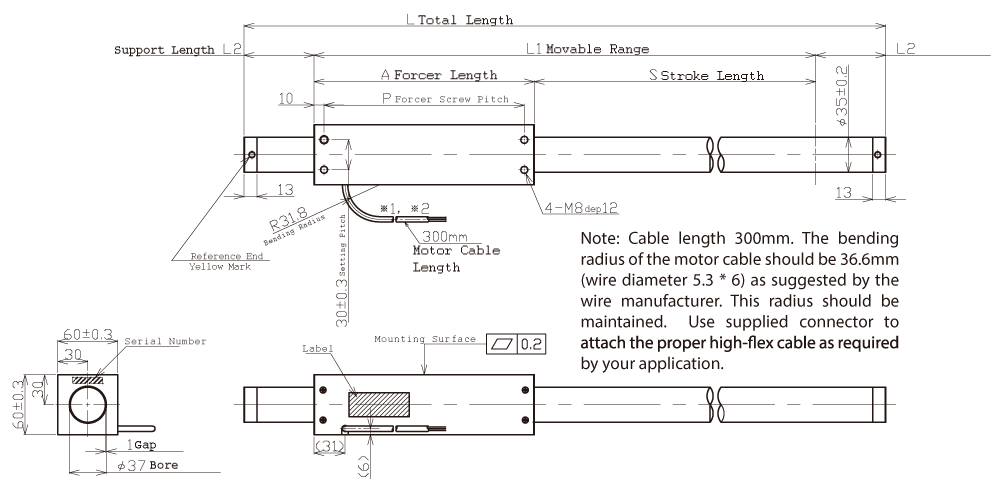

Dimension Guide

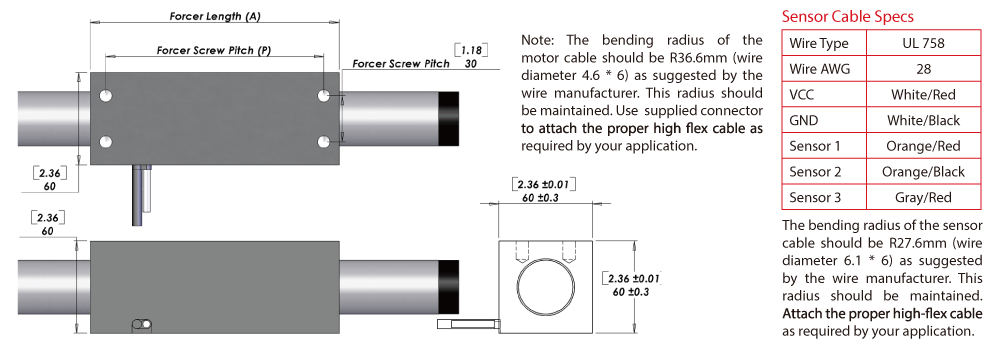

Hall Effect Specs
