SX060 series

Spec

    SX060D SX060T SX060Q
Continuous Force (N) 1.0 1.5 2.1
Continuous Current (A rms) 0.5 0.5 0.5
Acceleration Force (N) 4.1 6.2 8.3
Accel. Current (A rms) 2.1 2.1 2.1
Shaft Diameter (mm) 6 6 6
Forcer Size   Double windings Triple Windings Quadruple Windings
Forcer Length (mm) 34 46 58
Forcer Weight (kg) 0.023 0.030 0.036
Air Gap (mm) 0.5 0.5 0.5

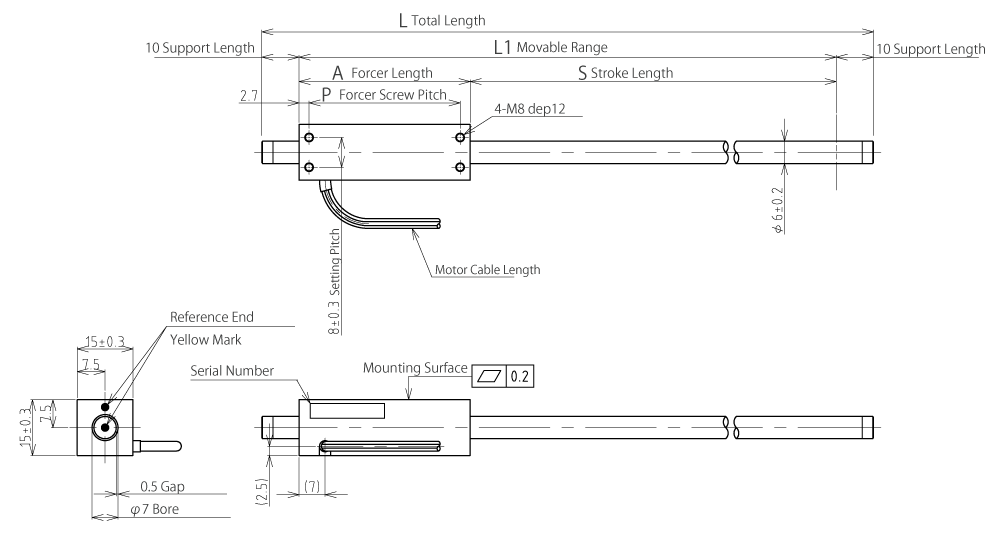

Dimension Guide
