Spec
| SX080D | SX080T | SX080Q | ||
| Continuous Force | (N) | 2.1 | 3.1 | 4.1 |
| Continuous Current | (A rms) | 0.8 | 0.8 | 0.8 |
| Acceleration Force | (N) | 8.3 | 12 | 16 |
| Accel. Current | (A rms) | 3.4 | 3.4 | 3.4 |
| Shaft Diameter | (mm) | 8 | 8 | 8 |
| Forcer Size | Double windings | Triple Windings | Quadruple Windings | |
| Forcer Length | (mm) | 40 | 55 | 70 |
| Forcer Weight | (kg) | 0.050 | 0.054 | 0.072 |
| Air Gap | (mm) | 0.5 | 0.5 | 0.5 |

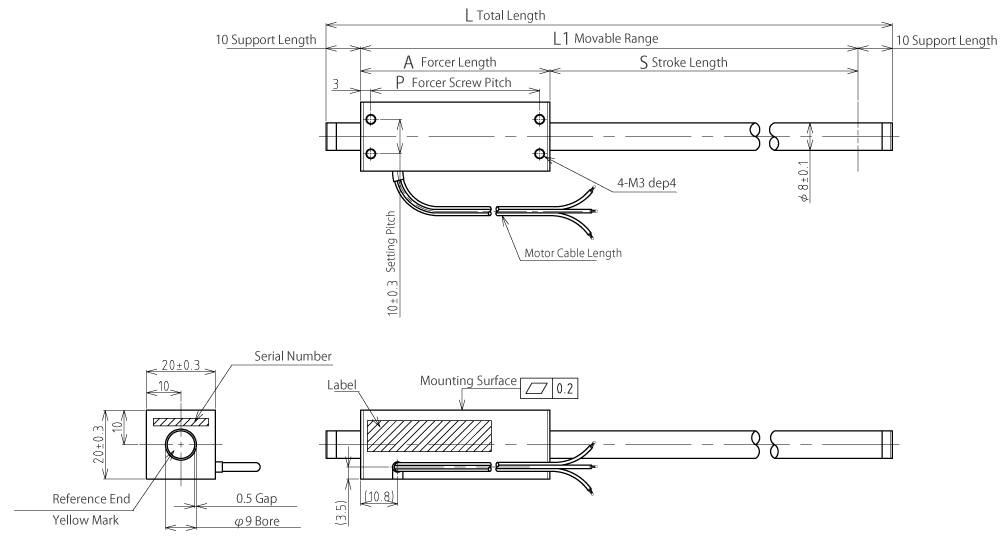

Dimension Guide
